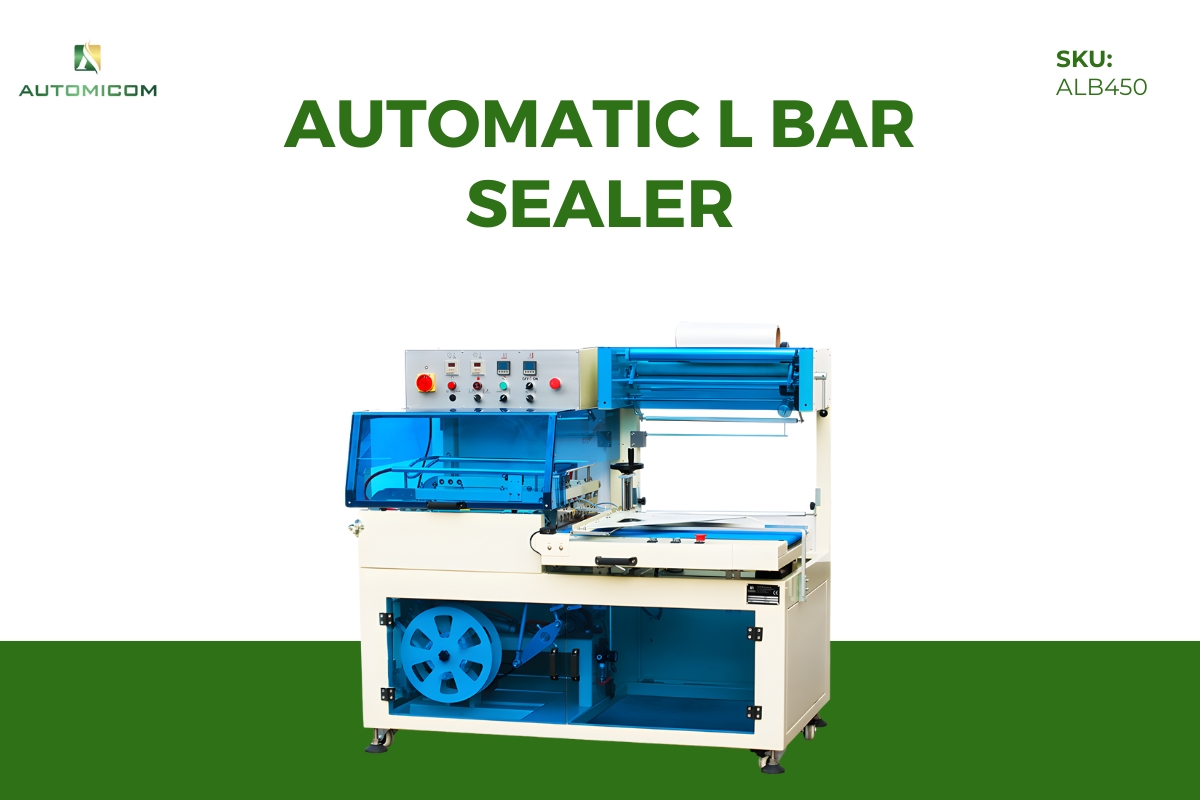

AUTOMATIC L BAR SEALER (ALB450)
INTRODUCTION OF AUTOMATIC L BAR SEALER
Firstly, the Automatic L bar sealer gives businesses a fast and stable way to seal products with clean and consistent results. It cuts film, seals edges, and moves each product forward in one smooth flow, so operators increase efficiency without extra effort. Moreover, the machine handles different film types and supports many product sizes, which helps factories run flexible and continuous production. In addition, when businesses combine it with a shrink tunnel, the final package looks tighter, clearer, and more professional.
The Automatic L-Bar Film Sealer delivers strong performance because it controls heat precisely and applies firm sealing pressure. Therefore, companies achieve higher output while keeping every package neat. As a result, this machine fits food, cosmetics, householdhttps://www.strategie.gouv.fr/english-articles/household-packaging-what-organizational-framework goods, and various retail products. Finally, both the Automatic L bar sealer and the Automatic L-Bar Film Sealer help factories upgrade quality, increase speed, and maintain long-term productivity.
SPECIFICATIONS
| Power Source | 220V / 50–60Hz |
| Total Power | 1.35 kW |
| Power of Transverse Sealing | 550W |
| Power of Vertical Sealing | 500W |
| Sealing Temperature | 170°C (depend on thickness) |
| Sealing Time | 0–3s (thường 0.8–1.2s) |
| Film Thickness | 0.03–0.20 mm |
| Conveyor Speed | 21.3 m/min (trước), 20 m/min (sau) |
| Film Feeding Speed | 17.6 m/min |
| Film Pulling Speed | 19.4 m/min |
| Capacity | 1200–1600 packs/hour |
| Air Pressure | 0.5 MPa |
| Conveyor Motor | AC 220V / 90W |
| Motor of Film Feeding | AC 220V / 25W |
| Motor of Waste Film Pulling | AC 220V / 40W |
| Motor of Film Turning | AC 220V / 15W |
| Packing Material | POF, OPP, PE |
| Max. Sealing Size | L500 × W450 mm |
| Max. Packing Size | L500 × W350 × H110 mm |
| Machine Size | L1700 × W1000 × H1400 mm |
| Weight | 330 kg |

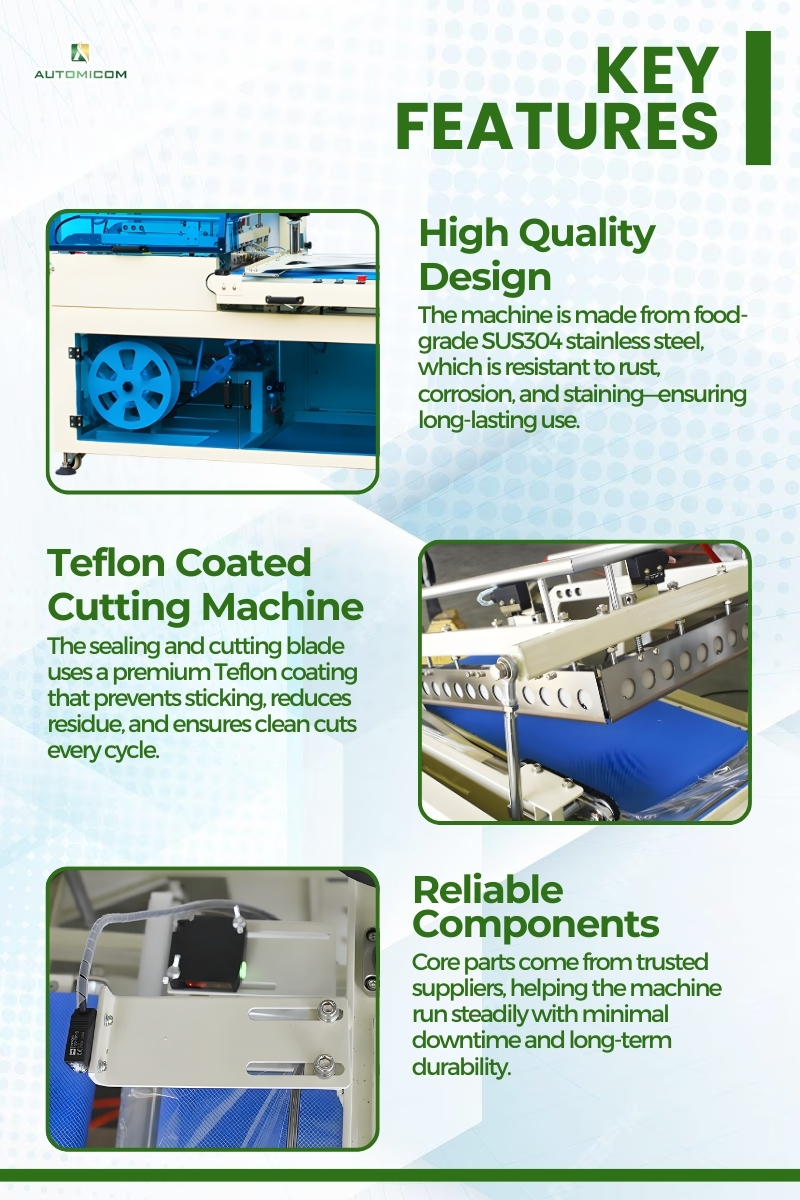

KEY FEATURES OF AUTOMATIC L BAR SEALER

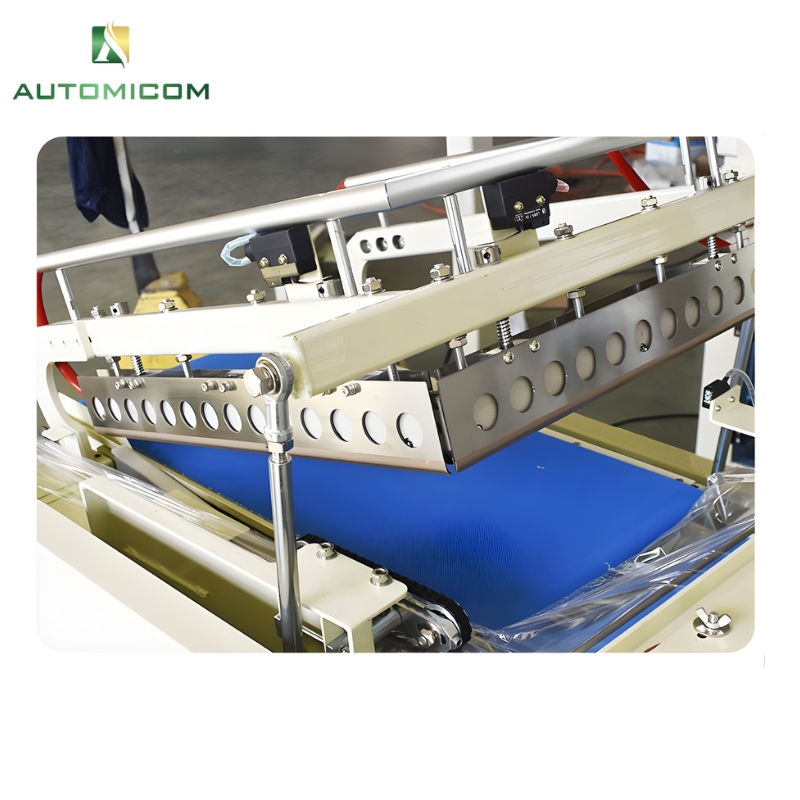

1. Teflon-Coated Cutting System
The machine uses a high-grade Teflon coating on the cutting blade to prevent film from sticking and to maintain clean cutting performance. Furthermore, this coating reduces residue build-up and extends the cutter’s lifespan even during continuous high-temperature operation.
2. Premium & Reliable Components
The machine operates with durable, industry-standard components sourced from trusted suppliers to ensure long-term stability. Consequently, it reduces maintenance downtime and keeps performance consistent in demanding production environments.

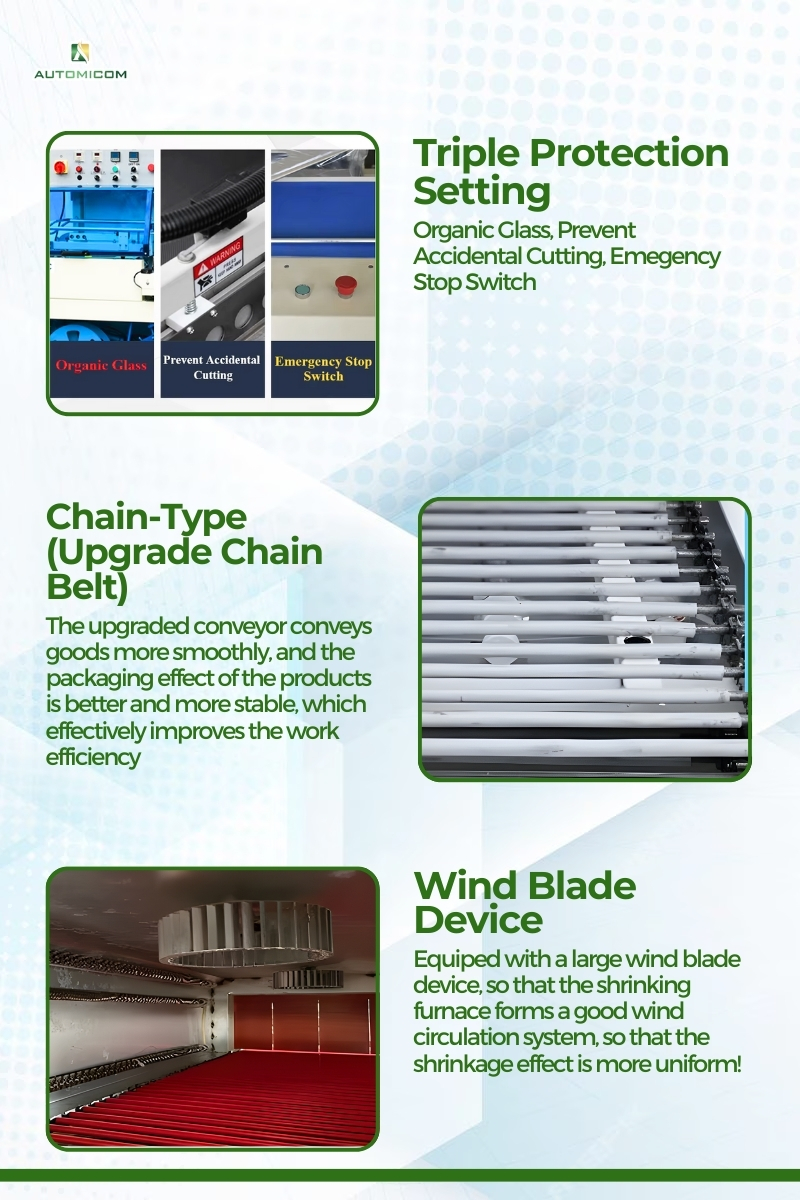

3. Advanced Triple Protection System
A triple-layer safety design safeguards the machine from overheating, electrical overload, and accidental misuse. Additionally, this protection keeps operators safe while supporting reliable, smooth operation during long working hours.
4. Optimized High-Flow Air Circulation
The system enhances airflow inside the shrink chamber to deliver strong and even heat distribution for better shrink quality. However, this design also prevents uneven shrinking and ensures a clean, professional appearance for each package.
5. Stainless Steel Heater Tubes
The stainless steel heater tubes provide stable heating, improved energy efficiency, and longer service life. Subsequently, this system lowers power consumption without affecting shrink performance.
6. Reinforced Triple Protection Structure
The machine includes an additional protective structure that stabilizes electrical performance and avoids unexpected shutdowns. Likewise, these extra safeguards ensure dependable operation in high-capacity production lines.

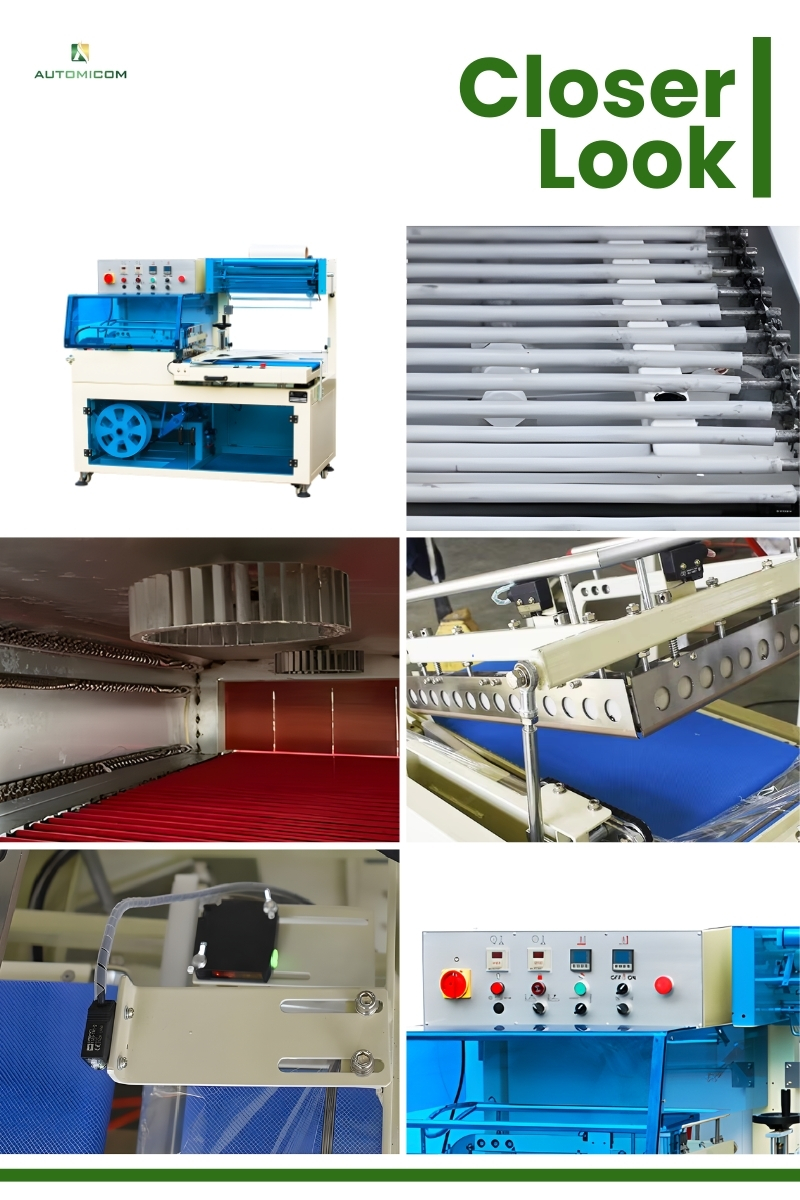

CLOSER LOOK
APPLICATIONS OF AUTOMATIC L BAR SEALER
1. Food & Beverage Packaging
Firstly, the Automatic L Bar Sealer supports a wide range of packaged foods such as bakery items, snacks, frozen goods, and bottled beverages. The machine seals each product tightly to keep it clean, fresh, and visually appealing. Moreover, the shrink wrap protects items from dust and external contamination, making it ideal for supermarkets and large food distributors.
2. Cosmetics & Personal Care Products
The machine plays a strong role in sealing skincare bottles, cosmetic boxes, wellness kits, and grooming items. In addition, the shrink packaging provides a premium look while preventing tampering, which helps brands maintain product integrity and professional presentation on store shelves.
3. Household & Daily Consumer Goods
Manufacturers use the system to pack detergents, kitchen tools, plasticware, cleaning supplies, and general household accessories. Meanwhile, the sealed package protects products from moisture, scratches, and damage during transportation, making logistics smoother and more reliable.
4. Electronics & Small Appliances
The Automatic L Bar Sealer handles phones, chargers, cables, earbuds, and small electronic devices with ease. Therefore, the shrink wrap improves shelf appearance, prevents dust buildup, and reduces the risk of product scratches or breakage during handling and storage.
5. Stationery, Books & Office Supplies
Finally, companies rely on this machine to package notebooks, folders, pens, calendars, and printed materials. The shrink film keeps products organized, clean, and ready for retail distribution, while also enhancing their professional appearance for commercial sales and bulk shipments.
