Automatic Heat Shrink System (SKU: ALB450, HS4525)

Contact for price

Complete Automatic System – Integrates Automatic L Bar Sealer and Heat Shrink Tunnel
High-Speed Performance – Ensures fast, continuous sealing and shrinking process
Precision & Consistency – Delivers accurate sealing with uniform shrink results
Flexible Packaging Capability – Supports various films and product sizes
Smart & Efficient Operation – Reduces labor while increasing productivity

SKU: L450T, HS4525-1 Category: Sealer & shrink packing machine Tag: Automatic Heat Shrink System

Contents

INTRODOCTIONS OF AUTOMATIC HEAT SHRINK SYSTEM:

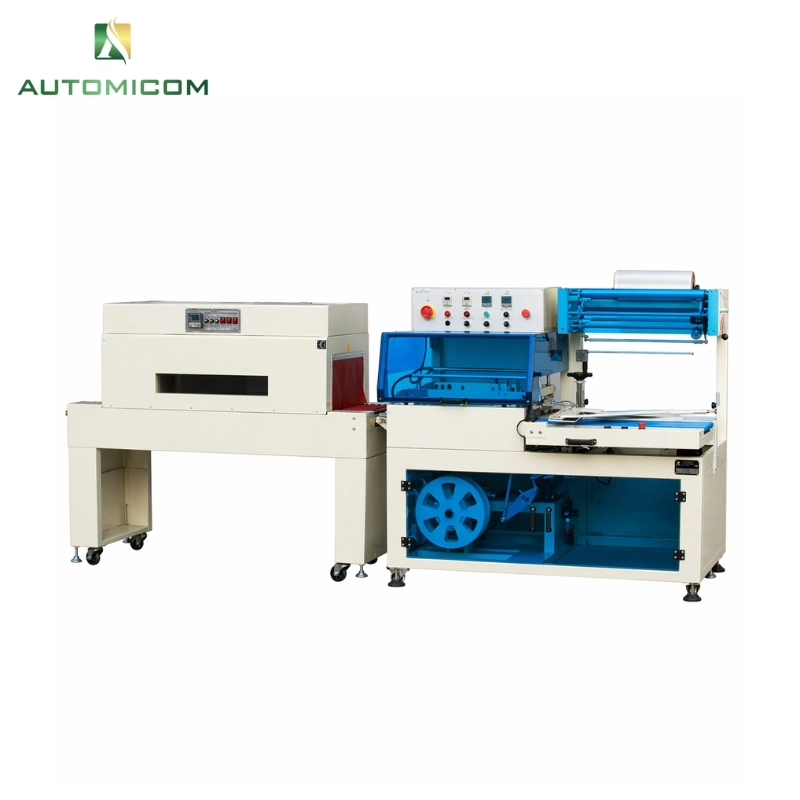

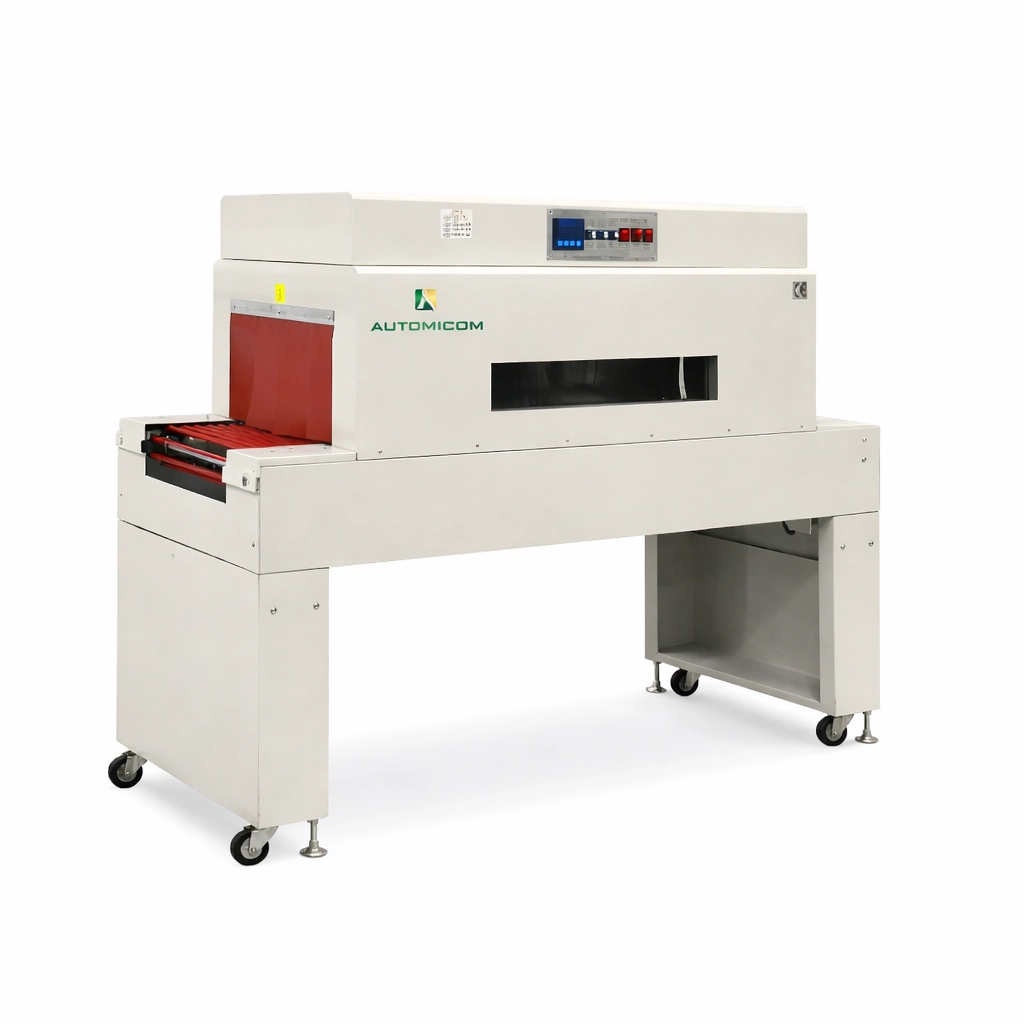

The Automatic Heat Shrink System combines the Automatic L Bar Sealer (ALB450) with the Heat Shrink Tunnel (HS4252) to create a fully integrated, high-efficiency packaging solution. Firstly, the system performs automatic film feeding, cutting, and precise L-shaped sealing in one continuous process, ensuring fast and consistent output. Moreover, the shrink tunnel applies controlled heat and strong airflow to produce tight, smooth, and professional packaging finishes. Additionally, the system supports various film types and product sizes, making it suitable for diverse industries. Therefore, businesses can increase productivity, reduce manual labor, and achieve stable, high-quality packaging performance.

SPECIFICATIONS

Specification	Automatic L Bar Sealer (ALB450)	Heat Shrink Tunnel (HS4252)
Model	ALB450	HS4252
Type	Automatic	—
Power Supply	220V / 50–60Hz	220–440V / 50–60Hz / 3P
Total Power	1.35 kW	8 kW
Conveyor Speed	Up to 21.3 m/min	0–15 m/min
Conveyor Load	—	120 kg
Seal Size	Max. 500 × 450 mm	—
Max Product Size	500 × 350 × 110 mm	400 × 210 mm
Tunnel Size	—	1200 × 450 × 250 mm
Machine Size	1700 × 1000 × 1400 mm	1750 × 710 × 1370 mm
Machine Weight	330 kg	120 kg
Compatible Film	POF, OPP, PE	—

KEY PRODUCT FEATURES

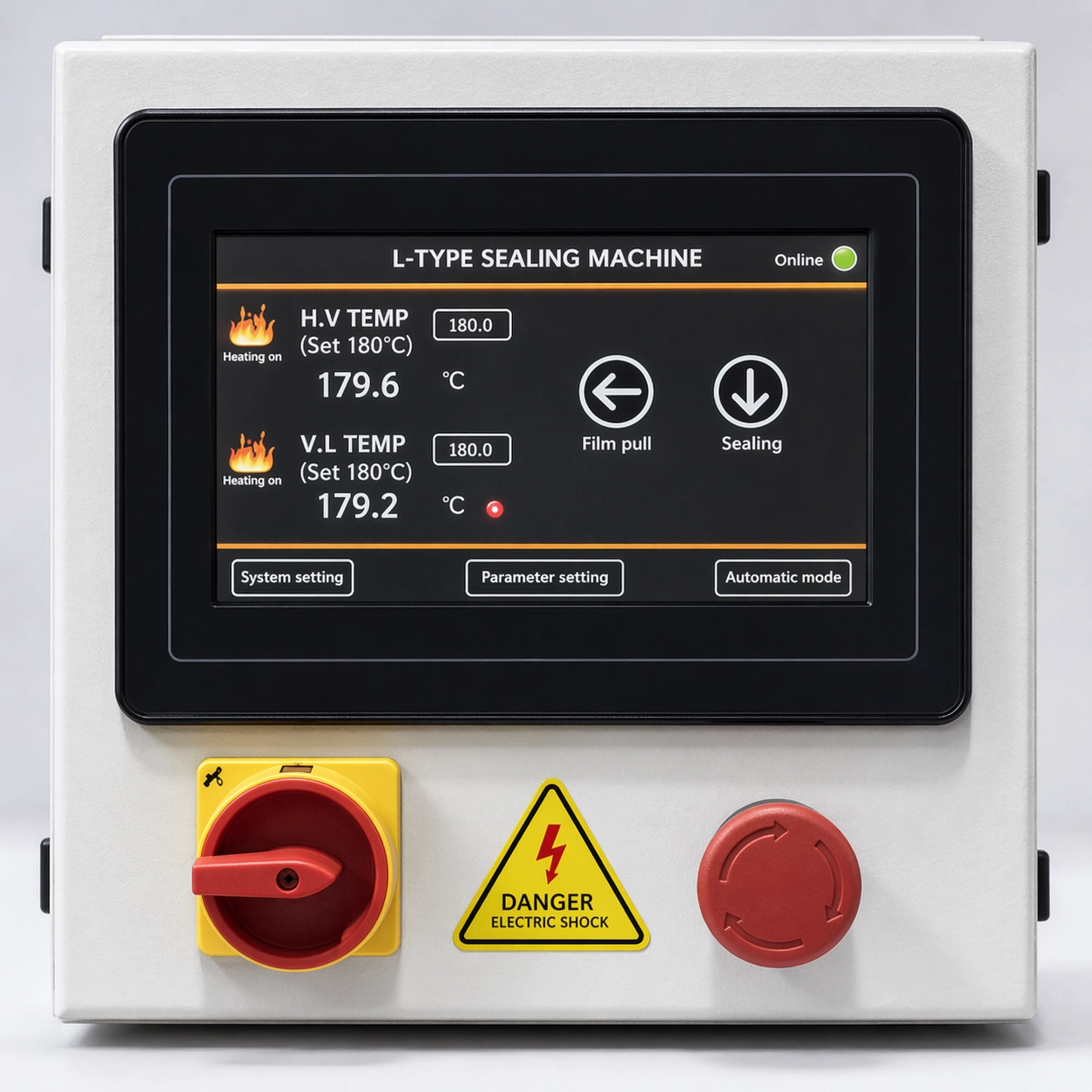

Digital Display with Emergency Stop ensures real-time monitoring, precise control, and enhanced safety, allowing operators to quickly respond and maintain stable, efficient machine operation at all time.

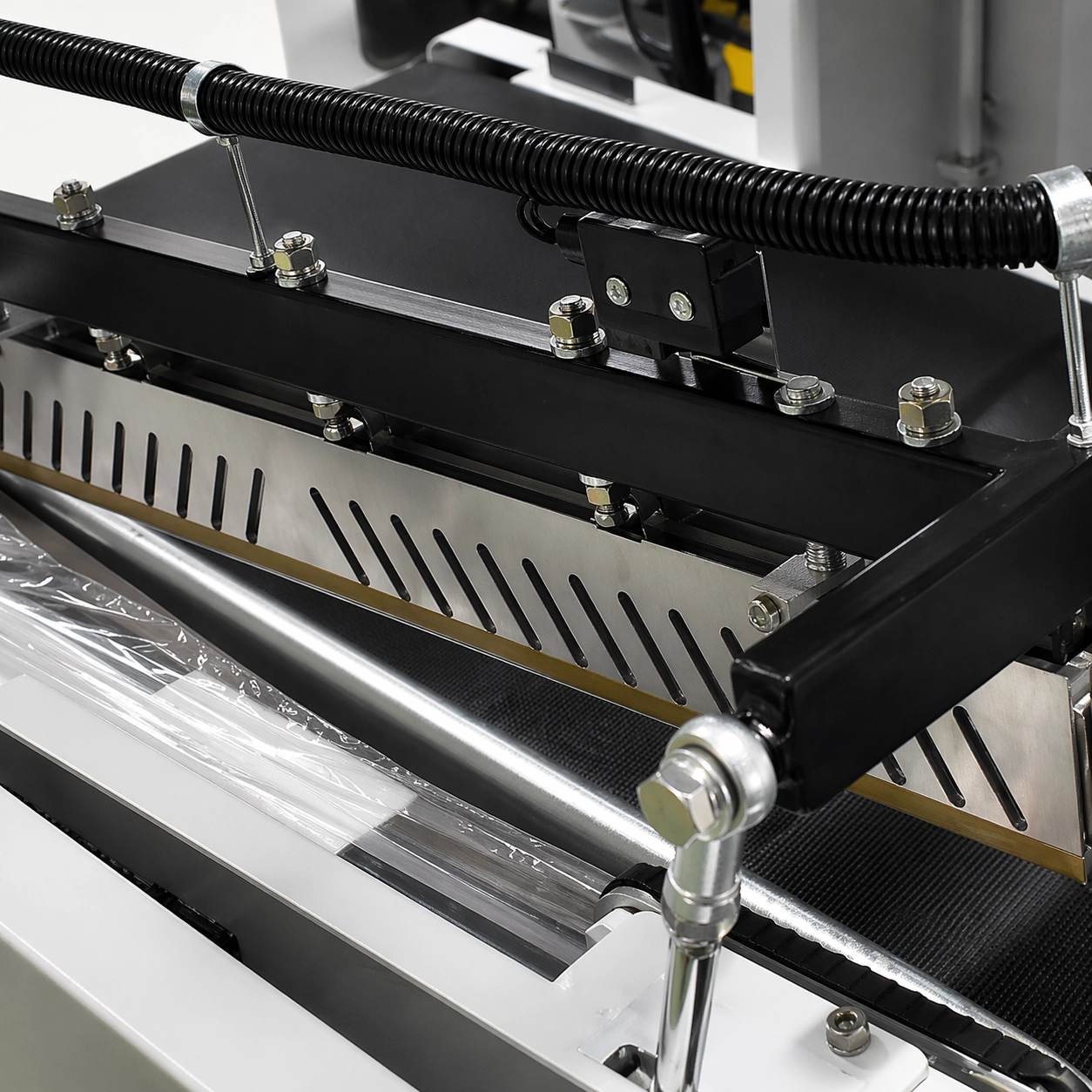

DuPont Teflon Coated Cutter ensures clean, non-stick sealing, reduces residue buildup, improves cutting precision, and extends blade lifespan for consistent, high-quality packaging performance.

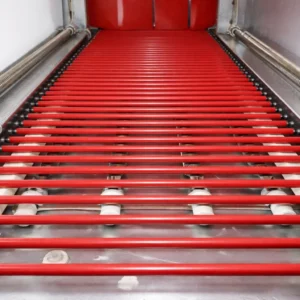

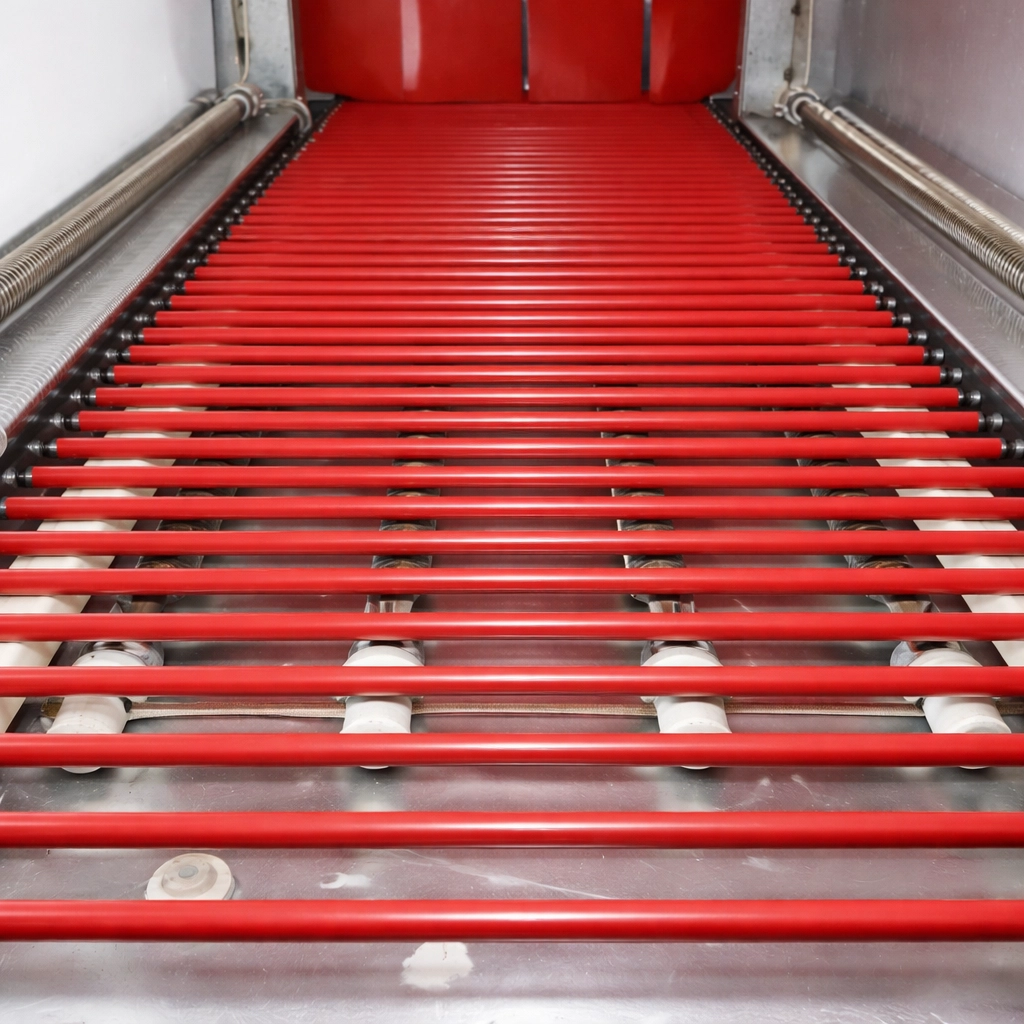

Upgraded Chain Conveyor ensures smooth product movement, stable packaging results, and improved efficiency, supporting consistent heat shrink performance during continuous, high-speed production operations

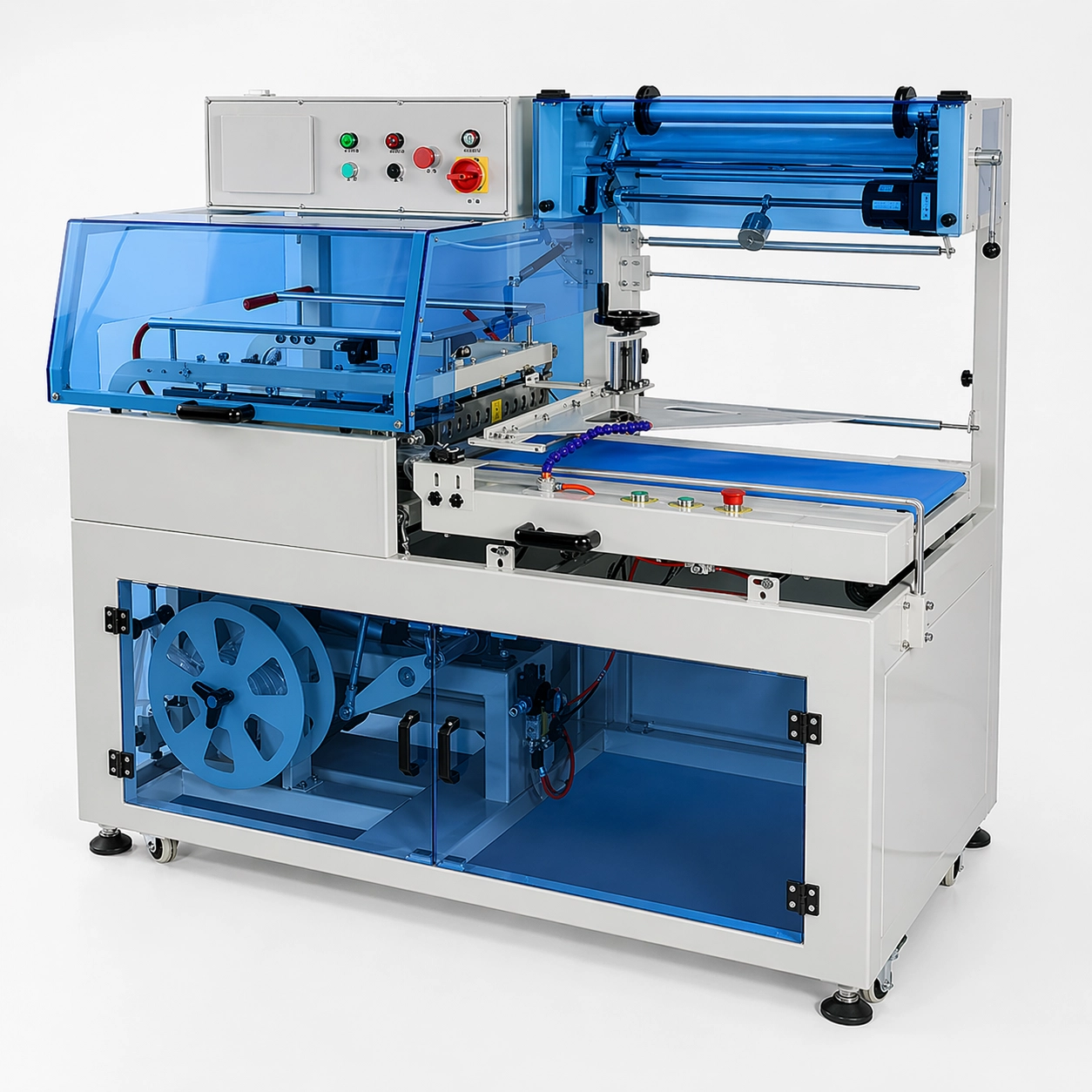

Heavy-Duty Construction ensures long-lasting performance with robust components and reliable mechanics, supporting continuous operation while reducing maintenance needs, minimizing downtime, and improving overall efficiency

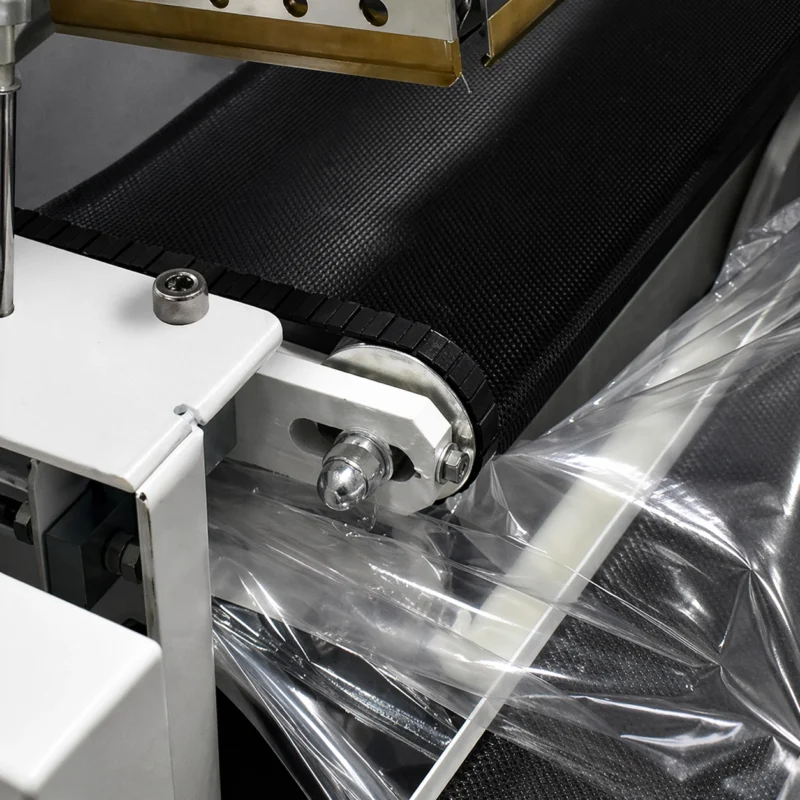

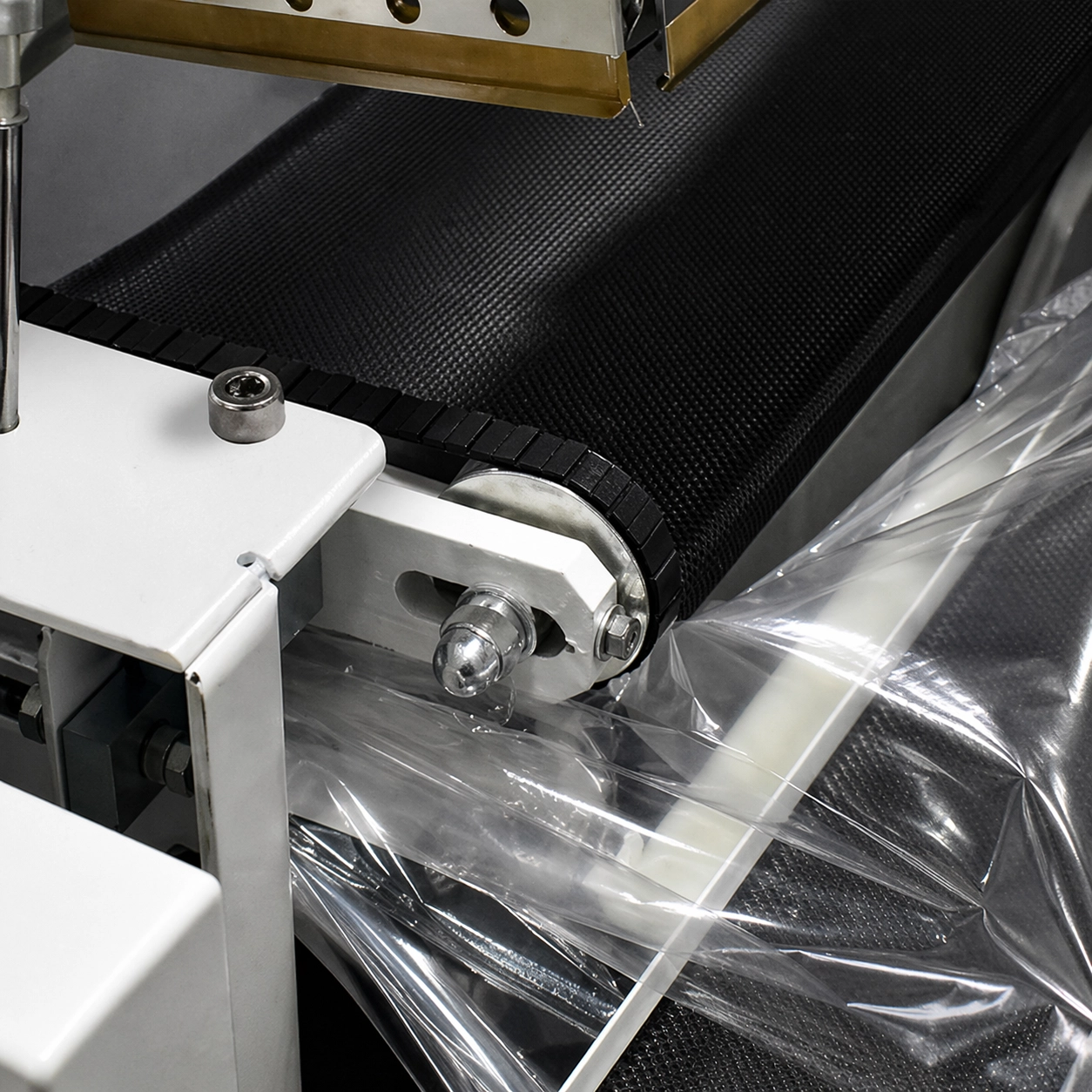

Automatic Film Feeding System ensures smooth film delivery and efficient waste collection, reducing manual handling, minimizing material waste, and improving overall packaging speed and workflow efficiency

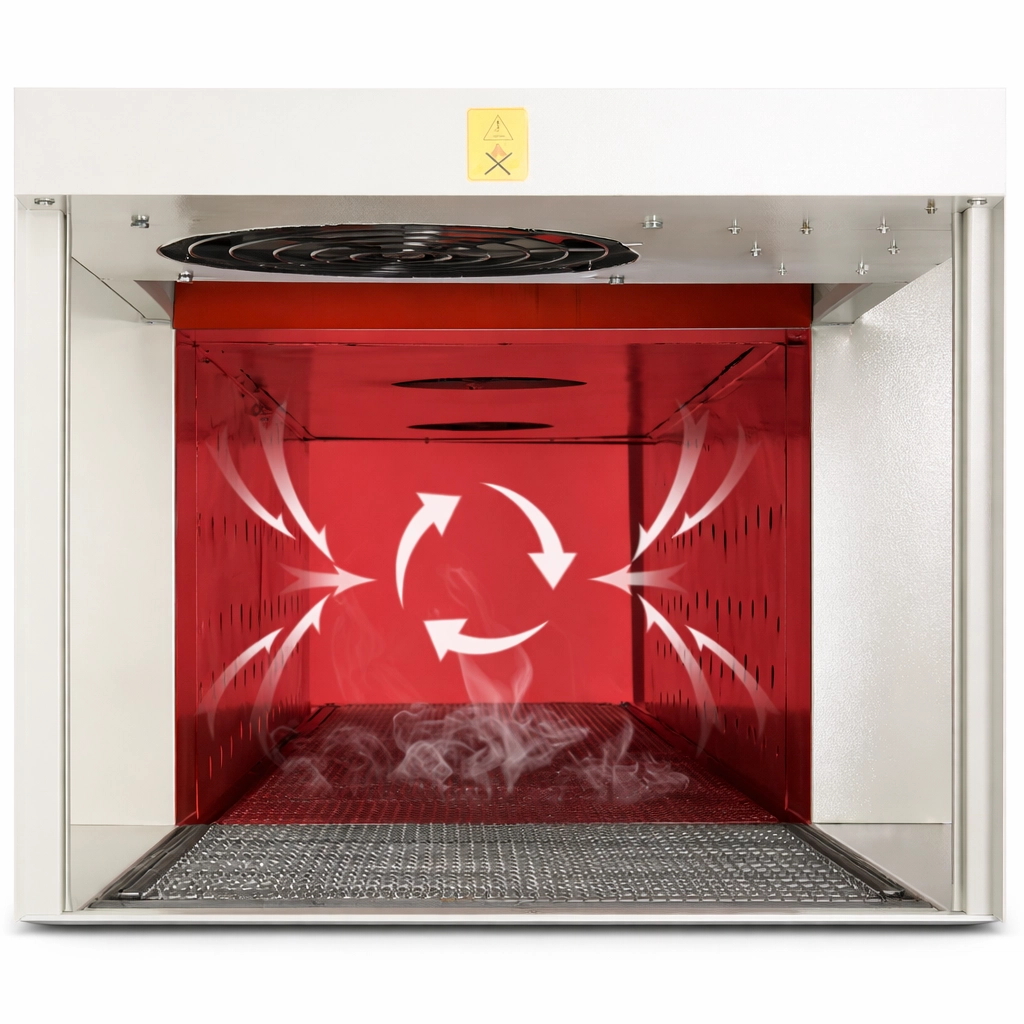

Jet-Propelled Heat System: Large heating chamber with jet-propelled technology ensures fast, uniform, and professional shrinkage for a wide variety of product sizes and types.

APPLICATIONS OF AUTOMATIC HEAT SHRINK SYSTEM

Food Packaging – Wraps snacks, beverages, and boxed food products with secure, hygienic, and attractive shrink packaging.

Cosmetics & Personal Care – Provides clean, tamper-evident packaging for bottles, boxes, and beauty products.

Electronics & Household Goods – Protects items from dust and damage while improving product presentation for retail display.

FIND OTHER PRODUCT:

Automatic L Bar Sealer (ALB450): LINK
Heat Shrink Tunnel (HS4252): LINK

1-year manufacturing warranty.

1. What types of products can this system package?
This system can package a wide range of products, including food, cosmetics, electronics, household items, and boxed goods.

2. What shrink films are compatible with the machine?
It works with POF, PVC, and PE shrink films, offering flexibility for different packaging needs.

3. Is the machine easy to operate?
Yes, it features a user-friendly control panel, adjustable settings, and simple operation suitable for most operators.

4. What is the production capacity of the system?
The system supports high-speed operation with a conveyor speed of up to 15 meters per minute, ideal for medium to large-scale production.
