Long Arm Impulse Sealer (FS600-FS1000)

Price range: $320.00 through $690.00

High quality aluminum material, strong, durable and long lasting.
Simple operation panel, adjustable heating level according to bag thickness.
FS-H series hand impulse sealers are widely used in such industries as foodstuff, special local products, tea, medicine, hardware etc.
Fast speed heating bar.
FS modevlare widely applied to seal all kinds of plastics films, compound films and aluminum-plastic film.

SKU: FS500 | FS600 | FS700 | FS800 | FS900 | FS1000 Categories: Impulse sealer, Sealing machine Tag: Long Arm Impulse sealer

Contents

INTRODUCTION OF LONG ARM IMPULSE SEALER

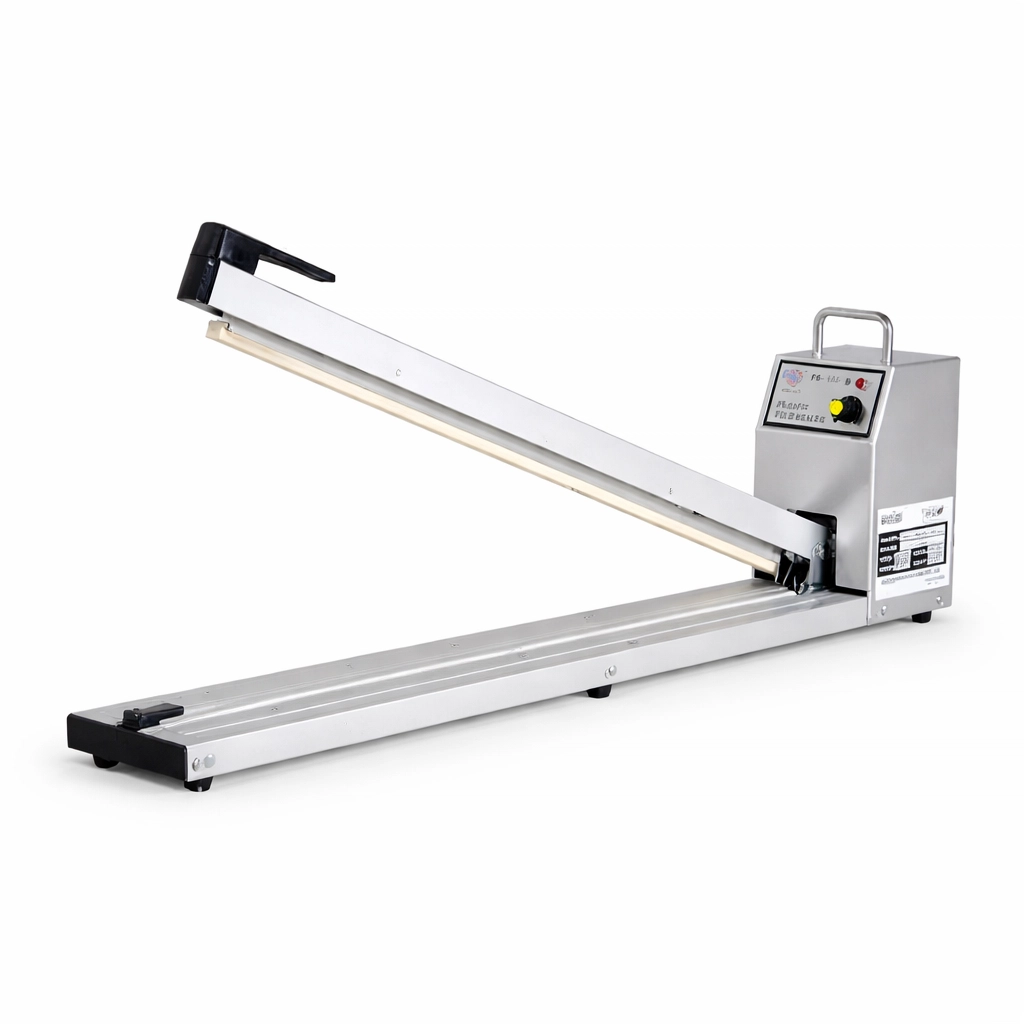

The Long Arm Impulse Sealer is specially designed for sealing extra-long bags ranging from 60 cm up to 100 cm, making it ideal for applications where standard impulse sealers (typically limited to 40 cm) are not sufficient.

With its extended sealing arm, it allows you to seal larger or multiple bags at the same time, significantly improving efficiency and reducing operation time. Equipped with a more powerful motor, the machine ensures stable heat distribution and consistent sealing performance across the entire length.

It works effectively with common materials such as polyethylene (PE) and polypropylene (PP), delivering strong, airtight seals. The adjustable sealing time and simple controls provide flexibility for different bag thicknesses and packaging needs.

SPECIFICATIONS OF LONG ARM IMPULSE SEALER

Model	FS600	FS700	FS800	FS900	FS1000
Sealing leghth	600mm	700mm	800mm	900mm	1000mm
Sealing width	3mm
Voltage	220V/50Hz
Power	780W	910W	1050W	1200W	1350W
Max Sealing Thickness	0.3mm
Heat time	0,2-3 seconds
Dimensions	800,5x350x245	900,5x350x245	1000,5x350x245	1100,5x350x245	1200,5x350x245
Weight	5,5 Kg	6 Kg	6,65 Kg	7 Kg	7,5 Kg

KEY PRODUCT FEATURES

Durable Aluminum Construction ensures strong, long-lasting performance with high-quality material that withstands heavy use and maintains reliability in demanding environments

Adjustable Heating Time for Precise Sealing allows 1–8 second control for accurate sealing, ensuring strong, consistent results without damaging bags of different thicknesses

Wide Industry Applications support food, tea, medicine, and hardware packaging, providing a convenient, cost-effective sealing solution for shops, households, and factories

Compatibility with Various Film Types works with plastic, compound, and aluminum-plastic films, allowing flexible sealing for a wide range of packaging materials and applications

Fast Heating for Increased Efficiency heats quickly, reduces waiting time, improves packaging speed, and helps streamline production processes while boosting productivity in busy work environments

User-Friendly Operation with Indicator Lights allows simple sealing with timer control, clear light signals, and consistent pressure for strong, reliable sealing results every time

APPLICATIONS FROM OUR SEMI AUTOMATIC MEAT SLICER

Food and Agricultural Packaging

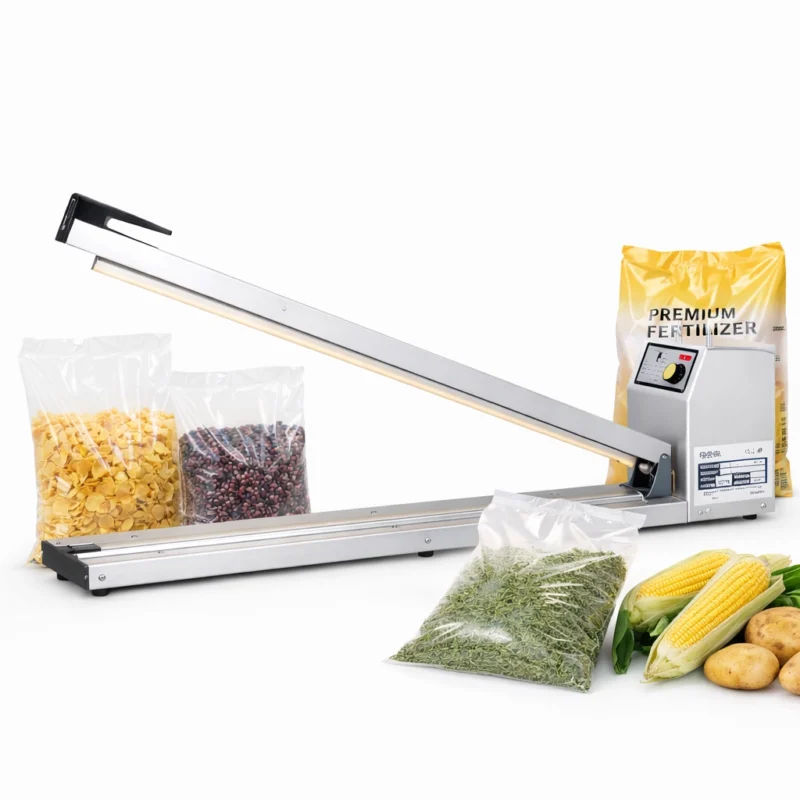

The Long Arm Impulse Sealer seals large food bags such as snacks, frozen items, and bulk ingredients, while also packaging seeds and fertilizers, helping maintain freshness and protect products from moisture and pests.

Medical and Hygiene Applications
The Long Bar Heat Sealer packages sterile medical supplies like gloves, bandages, and syringes, ensuring hygiene and preventing contamination during storage and transport.

FINDING OTHER SEALING MACHINE HERE: LINK

Size	FS 500, FS 600, FS 700, FS 800, FS 900, FS 1000

Warranty term: This product comes with a 6 months warranty for main parts except heating element and spring components.

If the machine encounters any issues, please send it to our servicing center for inspection and repair. On-site service is not available for this model.

What is a Long Arm Impulse Sealer used for?

A Long Arm Impulse Sealer is primarily used for sealing flexible plastic bags and pouches, particularly those that are larger or require a longer reach. It is ideal for packaging products in various industries, such as food, electronics, and medical supplies, ensuring airtight and secure seals that preserve product freshness and integrity.

How do I operate the Long Arm Impulse Sealer?

To operate the Long Arm Impulse Sealer, first, adjust the temperature and time settings based on the material you are sealing. Then, place the open end of the bag under the sealing arm, close it to initiate the sealing process, and hold it for the designated time. Once the light indicates that sealing is complete, release the arm to reveal a secure seal.

What maintenance is required for the Long Arm Impulse Sealer?

Regular maintenance includes cleaning the sealing area to remove residue and checking the sealing wire for wear or damage. It’s important to ensure that the machine is properly calibrated for optimal sealing. Additionally, periodically inspect electrical components and replace the sealing wire as needed to maintain performance and longevity. Always refer to the manufacturer’s guidelines for detailed maintenance instructions.
